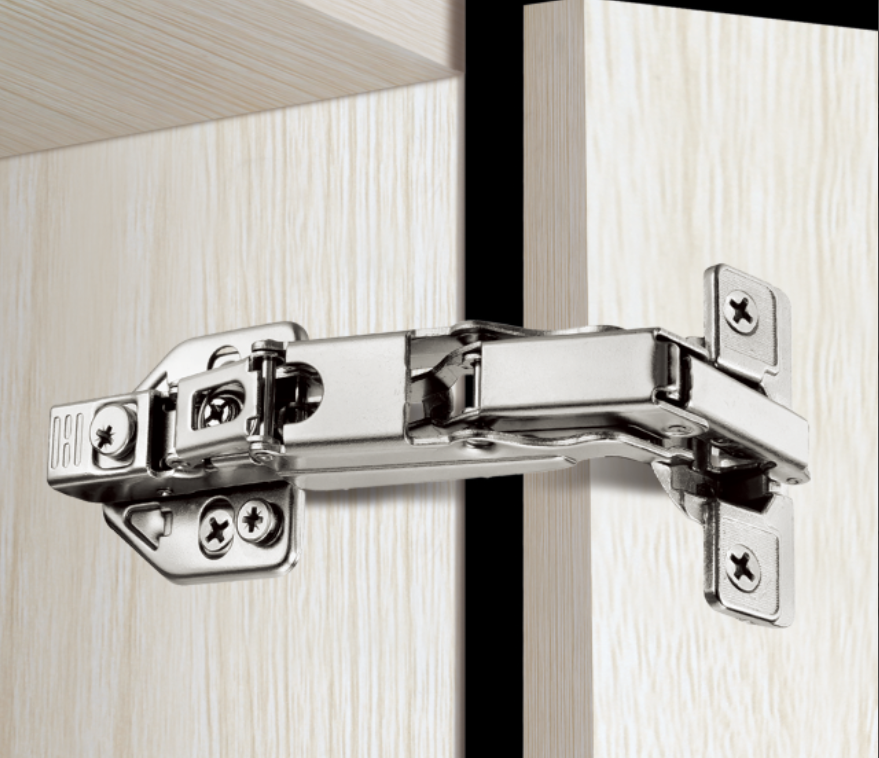

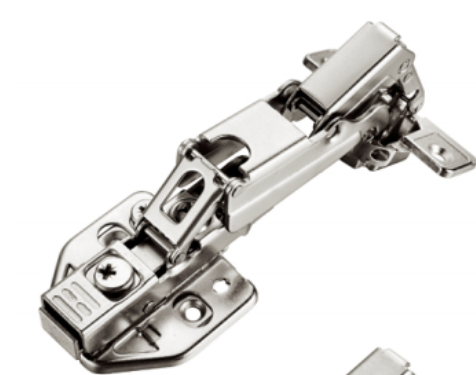

PHD-K165A 3D Soft Close Hinge – 165° Opening

Price on Enquiry

Product Description:

The PHD-K165A 3D Soft Close Hinge is designed for full-access cabinet doors, offering an extra-wide 165° opening angle—perfect for applications where broader reach and unobstructed access are essential.

Constructed from high-quality cold-rolled steel, this heavy duty hinge ensures long-term durability and strength. Its 3D adjustability allows for fine-tuned positioning in all directions, making installation and alignment easy and accurate.

Featuring a 35mm hinge cup, 45mm hole dimension, and 11.5mm cup depth, the PHD-K165A fits standard European-style cabinet doors. It supports door thicknesses from 14 to 23mm, delivering a secure and reliable fit across a range of applications.

The integrated soft close mechanism guarantees smooth, silent operation—enhancing comfort and preventing door slamming.

Key Specifications:

• Model: PHD-K165A

• Type: 3D Adjustable Soft Close Hinge

• Opening Angle: 165°

• Material: Cold-Rolled Steel

• Hinge Cup Diameter: 35mm

• Hinge Cup Hole Dimension: 45mm

• Cup Depth: 11.5mm

• Compatible Door Thickness: 14–23mm

• Closing Mechanism: Soft Close for silent, controlled motion with copper buffer
• Includes- Detachable base, Euro Screw (6.5 × 14mm), Dowels (8 × 12mm)
• Packing- 50 pcs/carton
