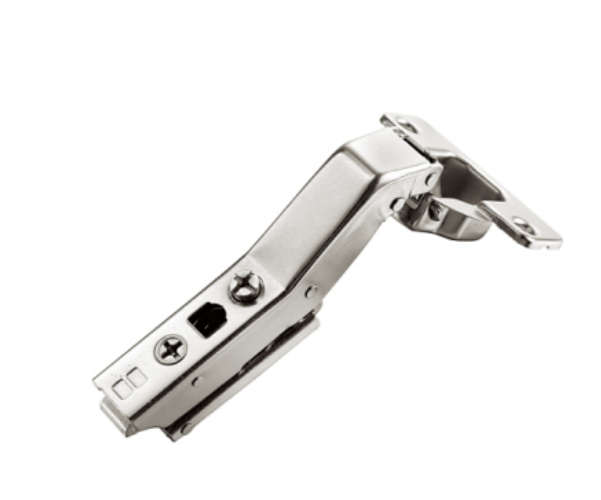

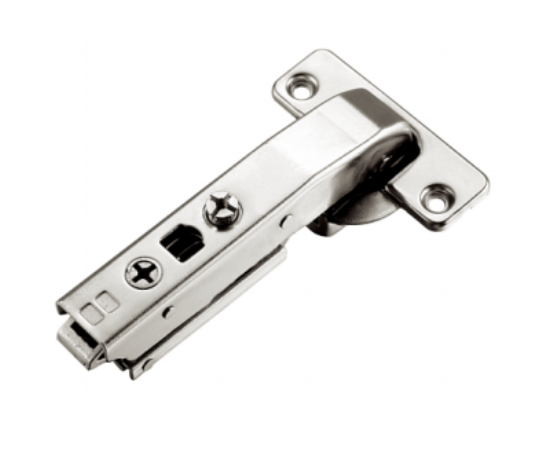

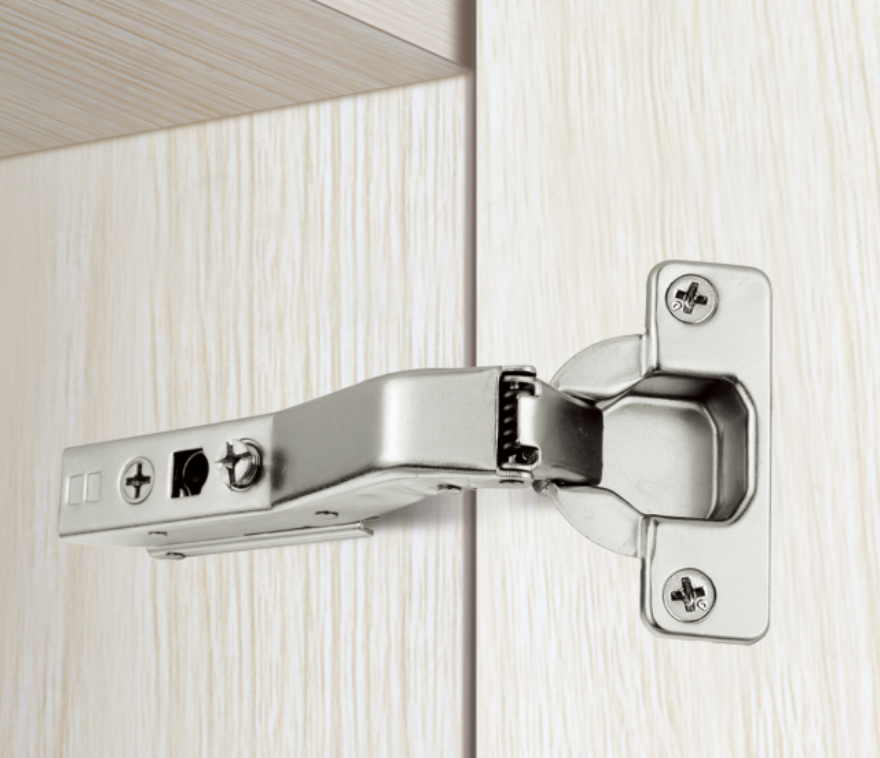

PHD-T45/T90 3D Soft Close Hinge

Price on Enquiry

Product Description:

Upgrade your cabinetry with the PHD-T45 3D Soft Close Hinge, engineered for smooth, silent operation and long-term reliability. Designed for precision and ease, this hinge offers adjustable 3D movement, making alignment and installation seamless for any project.

With a dual opening range of 45° and 90°, the PHD-T45 provides flexible motion control for various cabinet applications. Built from high-quality cold-rolled steel, it ensures both strength and corrosion resistance, ideal for kitchen, wardrobe, or utility cabinets.

The 35mm hinge cup with a 45mm hole dimension and 11.5mm depth makes it compatible with standard European-style cabinet doors. Suitable for door thicknesses between 14–21mm, this hinge delivers a secure fit and a premium soft-close experience.

Key Specifications:

• Model: PHD-T45

• Type: 3D Adjustable Soft Close Hinge

• Opening Angles: 45° and 90°

• Material: Cold-Rolled Steel

• Hinge Cup Diameter: 35mm

• Hinge Cup Hole Dimension: 45mm

• Cup Depth: 11.5mm

• Compatible Door Thickness: 14–21mm
• Closing Mechanism: Soft Close for silent operation
• Includes- Detachable base, Euro Screws (6.5x14mm) dowels (8x12mm)
• Packing- 100pcs/carton
